Project Description:

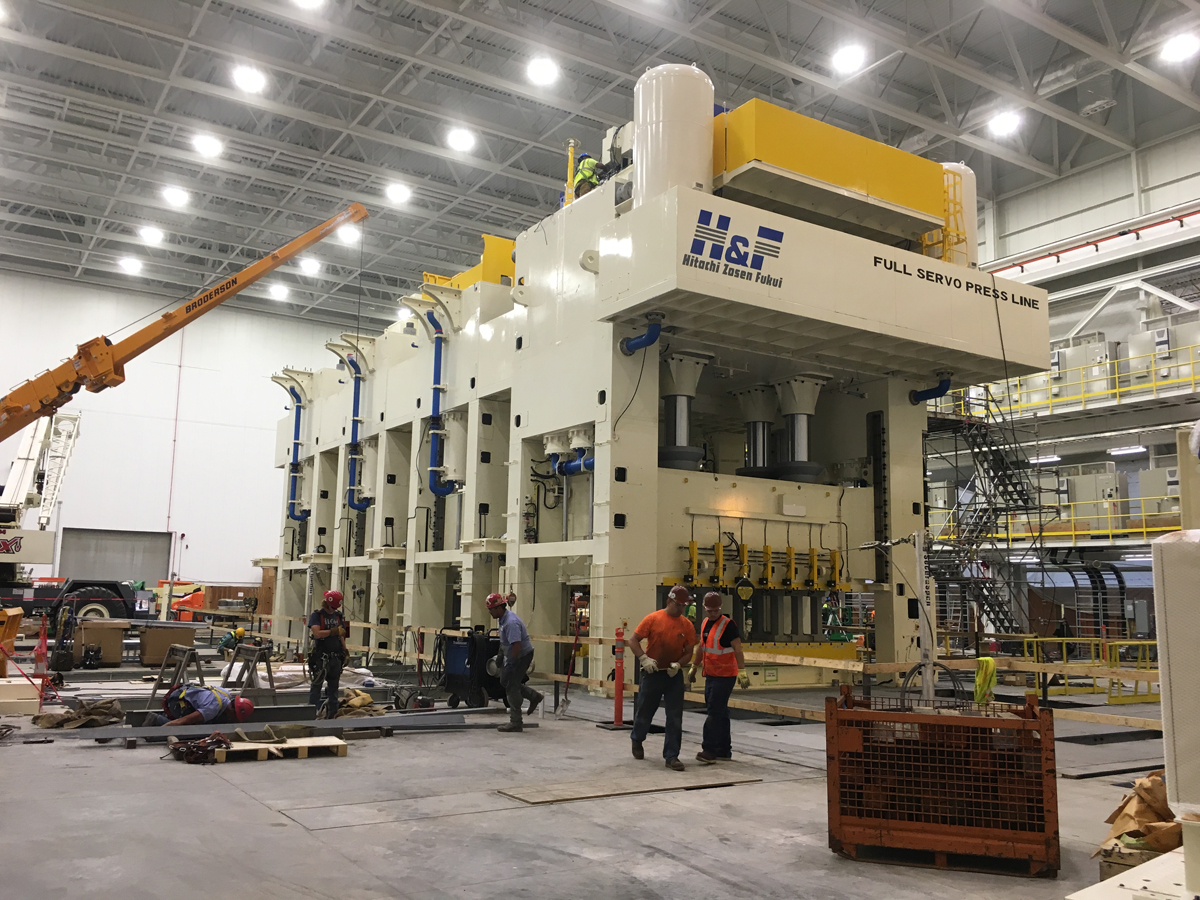

PSC was contracted to provide the turnkey installation of a tandem press line consisting of:

  • Four Servo drive-stamping presses
  • One 2300-ton lead stage press
  • Two 1600-ton intermediate stage presses
  • One  1000-ton final stage press
  • Dual moving bolsters per press
  • Destack sheet feed system w/ sheet washer
  • Robotic transfer system
  • Automated tool-changing system
  • End-of-line exit conveyors
  • Auto-palletizing system
  • Full sound enclosure & dust cover

Turnkey installation included unloading, uncrating, mechanical assembly along with electrical wiring and piping connections to provide a fully operational system upon completion of our scope of work.

Project Highlights:

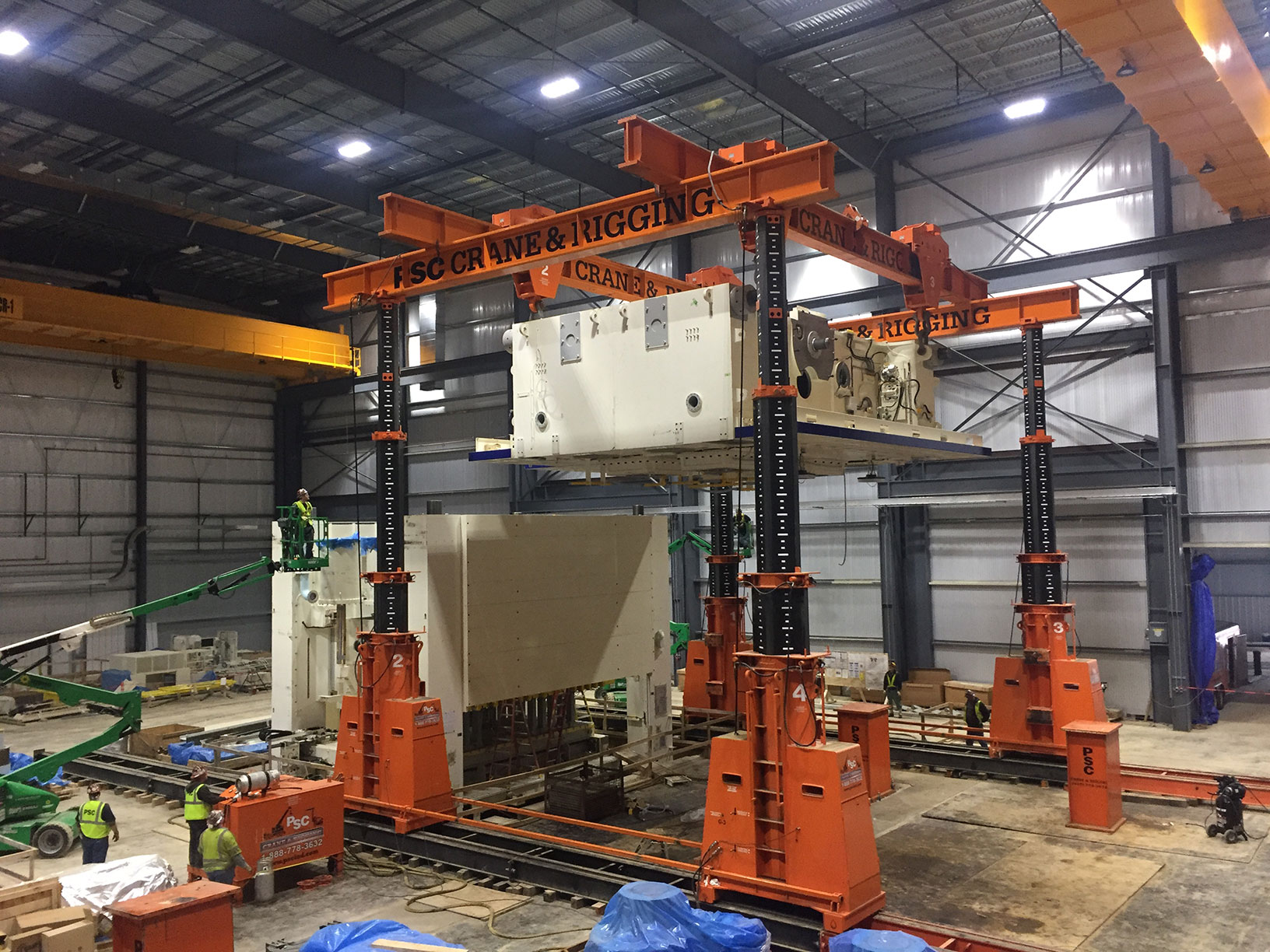

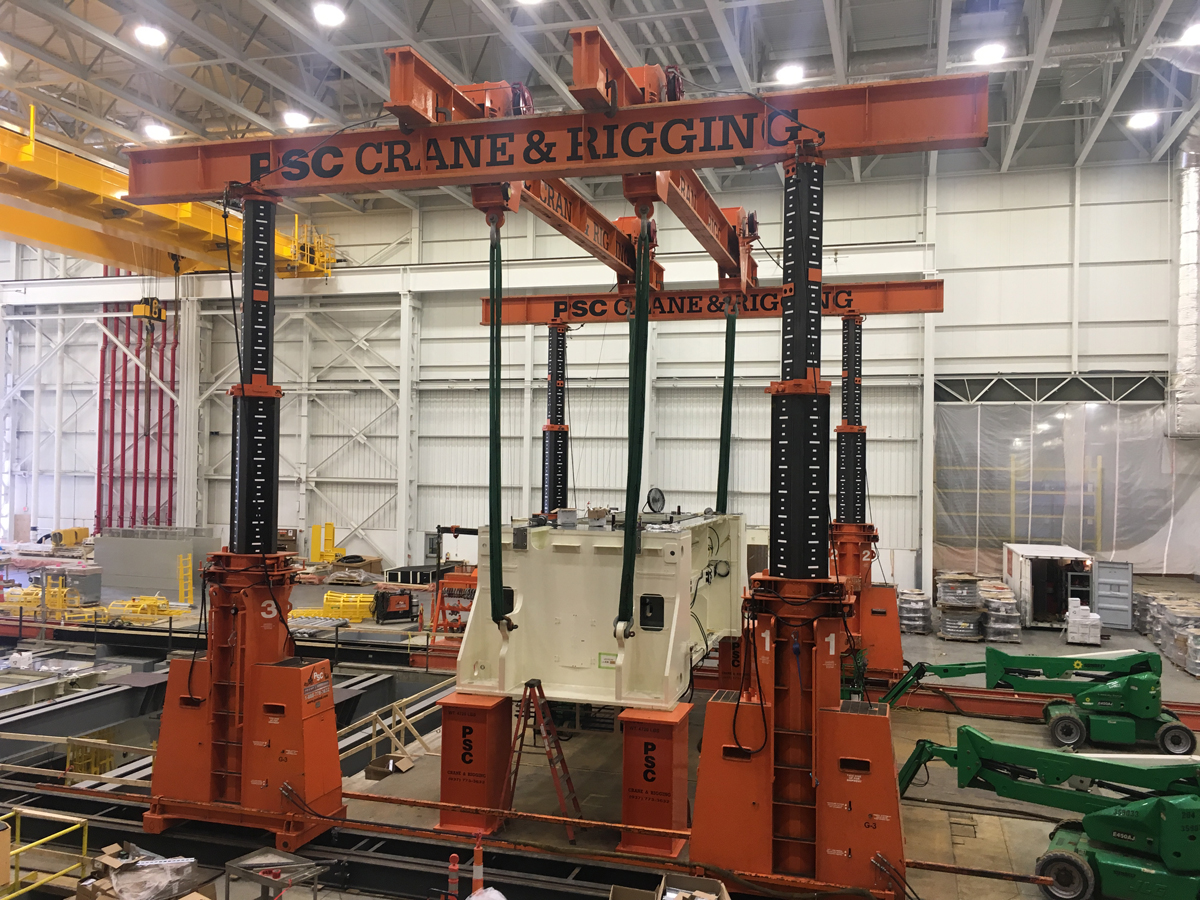

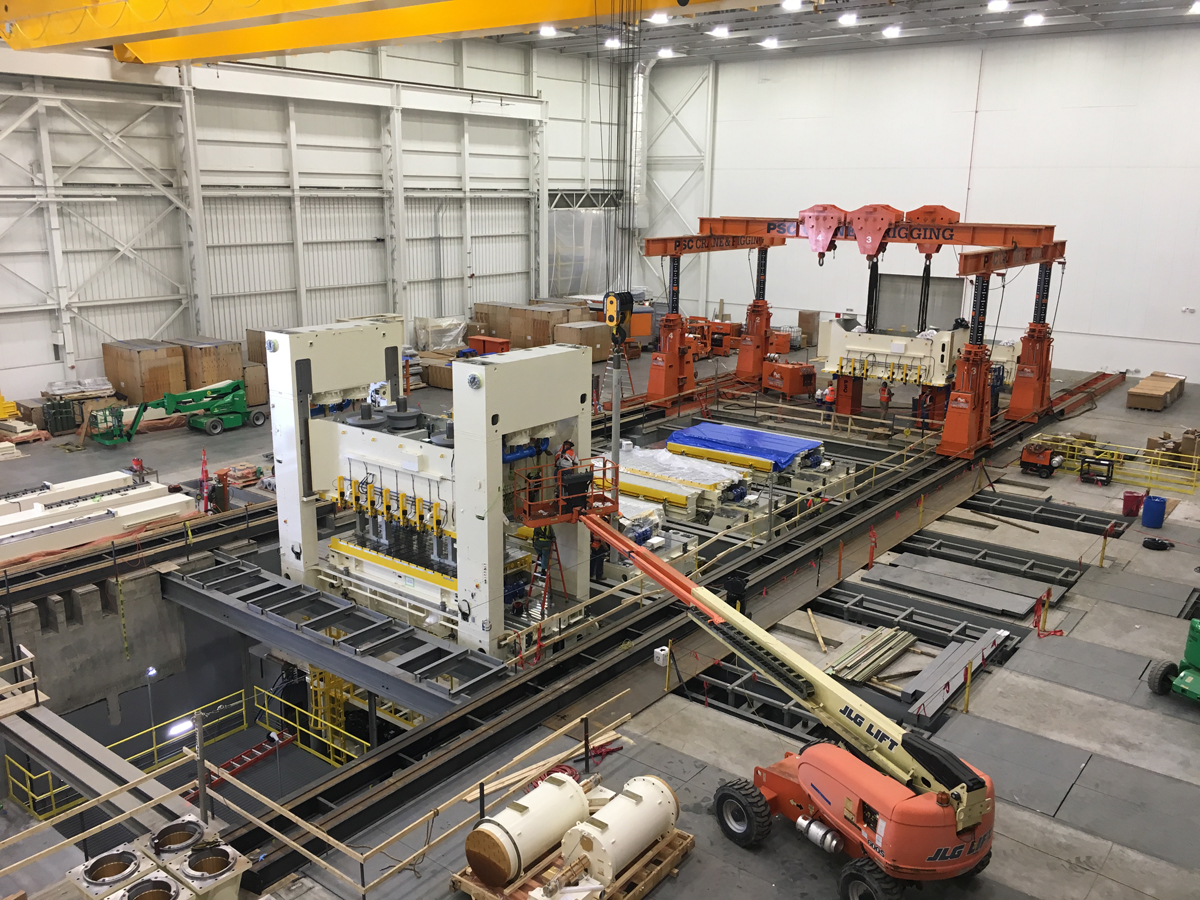

  • Used two hydraulic gantries

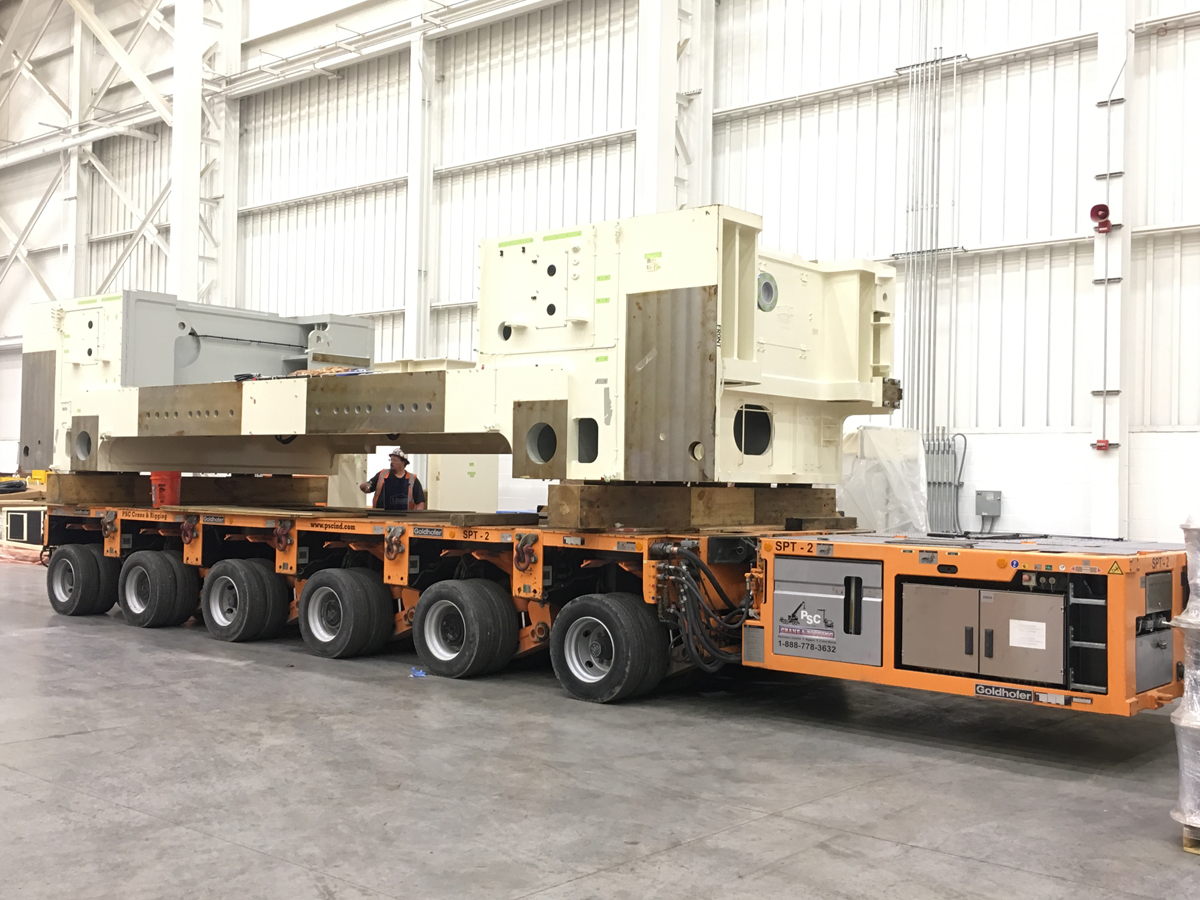

  • SPMT trailer
  • Multiple forklifts to 30-ton capacity
  • Specialty tooling and rigging
  • 24 super- and heavy-haul loads of press line components
  • 107 legal loads of press Line components
  • 444 cases of press line components
  • 2,700 tons of freight (5.4 million pounds)
